Pn Junction Diode Forward Bias Condition 58 Off Pn junction diode definition: a pn junction diode is defined as a semiconductor device that allows current to flow in one direction in forward bias and blocks current in reverse bias. The article discusses the electrical characteristics of pn junction diode, focusing on their forward and reverse bias behavior, including how voltage and current affect diode performance.

Pn Junction Diode Forward And Reverse Bias Circuit Diagram What is p n junction diode, forward bias and reverse bias explained electronic devices & circuits our mantra:information is opportunity.knowledge is p. Explain the working of p n junction diode in forward and reverse biased mode. if a germanium crystal or silicon crystal is doped during manufacture in such a way that half of it is p type and other half is n type, we get p n junction. 3 forward and reverse biased pn junctions image is obvious for this lecture . asic definition of what this component do. s? this here is also a forward biased diode! and how about rever. e biased diodes for opt. cal fiber receivers? 2 review of currents zero bias, but. p p x e x = qd p dx drift: minority carrier n generation near . Reverse bias: the p type is linked to the negative terminal of the voltage potential, while the n type is connected to the positive terminal. the p n junction is said to be forward biased when the p type is connected to the positive terminal of the battery and the n type to the negative terminal.

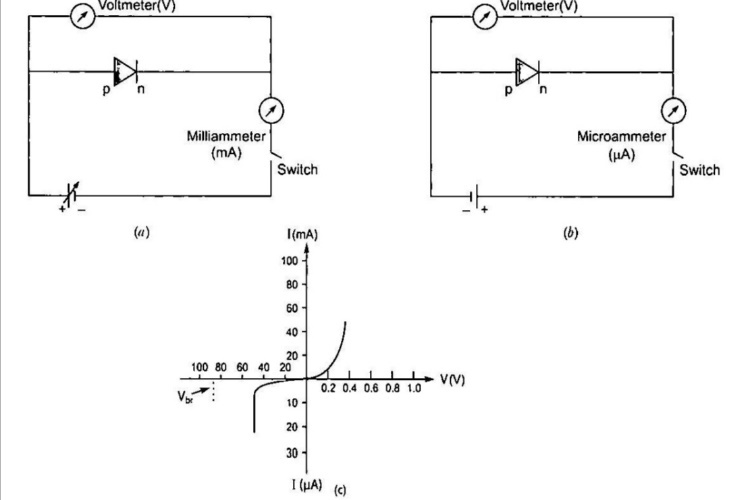

Pn Junction Diode Forward And Reverse Bias Circuit Diagram 3 forward and reverse biased pn junctions image is obvious for this lecture . asic definition of what this component do. s? this here is also a forward biased diode! and how about rever. e biased diodes for opt. cal fiber receivers? 2 review of currents zero bias, but. p p x e x = qd p dx drift: minority carrier n generation near . Reverse bias: the p type is linked to the negative terminal of the voltage potential, while the n type is connected to the positive terminal. the p n junction is said to be forward biased when the p type is connected to the positive terminal of the battery and the n type to the negative terminal. Gain a greater understanding of the difference between pn junction reverse bias and forward bias. learn about the types and characteristics of forward and reverse bias in a pn junction diode. In forward bias, a p n junction diode conducts current like a closed switch by reducing the depletion region. in reverse bias, it blocks current like an open switch by widening the depletion region. When the diode is forward biased, when the external applied voltage is increased and when it crosses the value of potential barrier the current increases steadily as we see in the figure. when the diode is reverse biased, only small current flows. In this article we will try to understand forward and reverse bias of pn junction diode. because the understanding of the behavior of pn junction diodes in forward and reverse bias is important in many electronic applications of pn junction, such as rectification, voltage regulation, and switching.

Pn Junction Diode Forward And Reverse Bias Circuit Diagram Gain a greater understanding of the difference between pn junction reverse bias and forward bias. learn about the types and characteristics of forward and reverse bias in a pn junction diode. In forward bias, a p n junction diode conducts current like a closed switch by reducing the depletion region. in reverse bias, it blocks current like an open switch by widening the depletion region. When the diode is forward biased, when the external applied voltage is increased and when it crosses the value of potential barrier the current increases steadily as we see in the figure. when the diode is reverse biased, only small current flows. In this article we will try to understand forward and reverse bias of pn junction diode. because the understanding of the behavior of pn junction diodes in forward and reverse bias is important in many electronic applications of pn junction, such as rectification, voltage regulation, and switching.
