Transfer Of Loads And Bending Of A One Way And Two Way Slab Under Applied Loads

Two Way Slab Load To Beam Pdf One way slab transfers the imposed loads in one direction only or in two edges to the perpendicular beam or walls. this tends to bend the slab in a short direction only. figure 2.1 one way slab direction of bending. the two way slab has four edge support. In the design of reinforced concrete structures, floor loads are usually transferred from slabs to beams, and from the beams, the loads are transferred to the columns. ultimately, the columns transfer the superstructure load to the foundation supporting the structure.

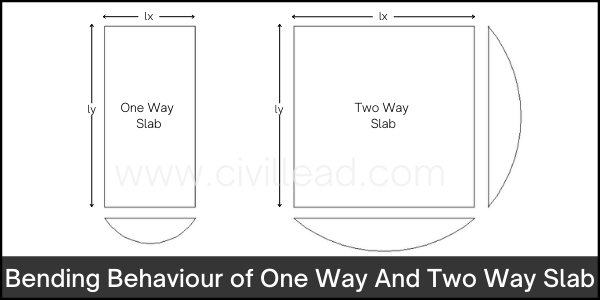

Bending Behaviour Of One Way Slab And Two Way Slab Civil Lead One way slabs have a smaller amount of steel, while two way slabs have more steel than one way slabs. during the transfer of any load, the bend in a one way slab is stretched over in only one direction, while in a two way slab, the bend occurs on both sides and is stretched over in both directions. In this example, we use different load factors and then use load combination to calculate ultimate distributed load on the slab. after that, the ultimate distributed load is transferred to the beams. We also describe the load transfer mechanisms in one way and two way slabs, including formulas for calculating load transfer. proper load transfer is a crucial aspect of building design and construction, and understanding it is essential for ensuring the safety and stability of the structure. In the absence of advanced analysis software, like fem modelling, it was necessary to idealize the slabs, one way or two way slabs, to use direct methods for the design. the figure a & b above shows deflection and bending pattern of both one way and two way slabs.

Bending Behaviour Of One Way Slab And Two Way Slab Civil Lead We also describe the load transfer mechanisms in one way and two way slabs, including formulas for calculating load transfer. proper load transfer is a crucial aspect of building design and construction, and understanding it is essential for ensuring the safety and stability of the structure. In the absence of advanced analysis software, like fem modelling, it was necessary to idealize the slabs, one way or two way slabs, to use direct methods for the design. the figure a & b above shows deflection and bending pattern of both one way and two way slabs. In one way slabs, the load is transferred in one direction to two supports, while in two way slabs, it is transferred in both directions to all four sides. understanding these patterns helps engineers design slabs correctly and place reinforcement where it is most needed for strength and safety. Key takeaways: one way slab: bends in one direction only, with main reinforcement placed along the shorter span where bending occurs. two way slab: bends in both directions,. Learn about the key differences between the one way slab and the two way slab and the different types of one way slabs used in the construction site. Understand the key differences between one way and two way slabs, including load transfer, steel placement, and ideal use for better structural design.
