The Best Workflow For Importing Step Files In Solidworks

The Best Workflow For Importing Step Files In Solidworks Trimech Group Learn how to use solidworks to export and import step files with this guide. using the new step file filter feature, you will be able to selectively choose w. This series of articles will focus on suggesting options, best practices and workarounds for maximizing the quality of the imported geometry, while reducing the manual work required by the end user, using only the standard functionality from inside solidworks.

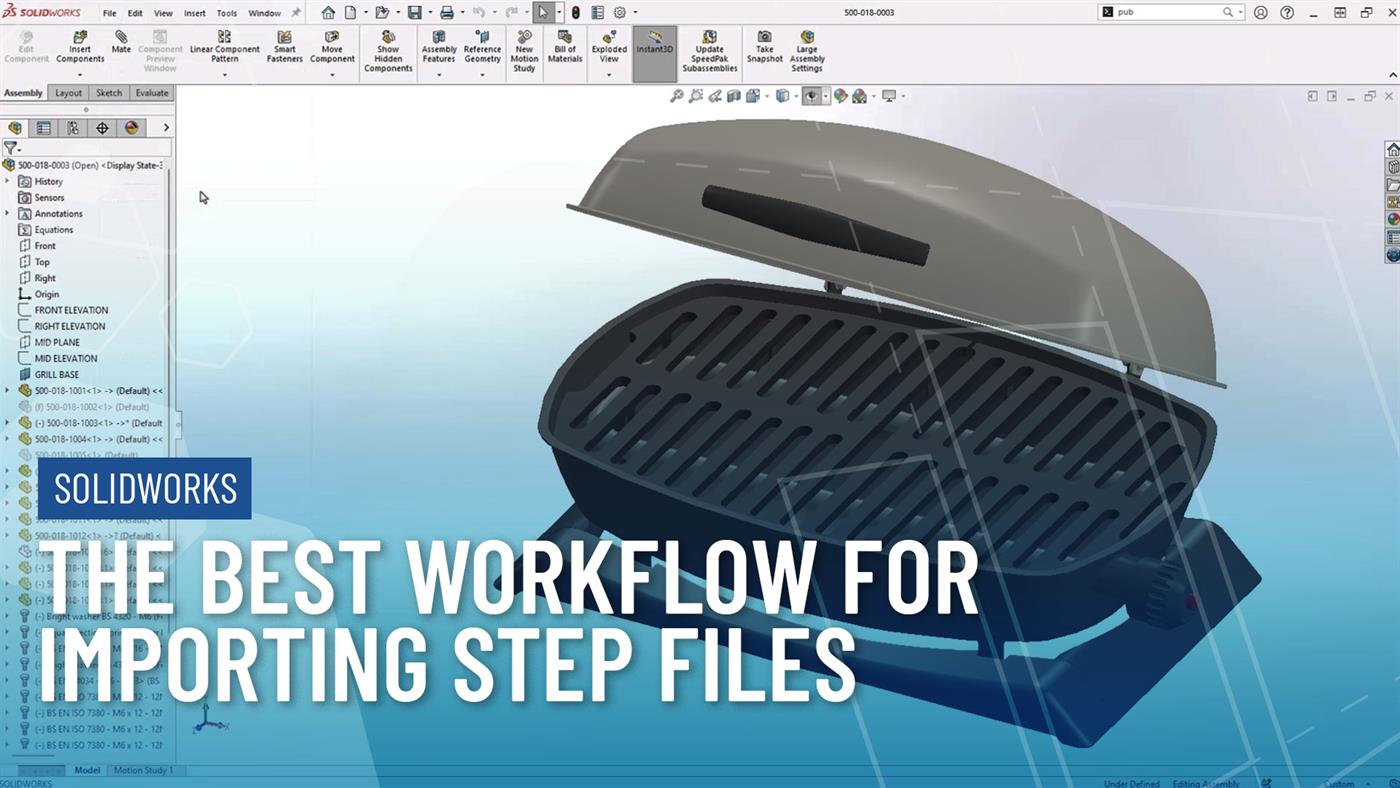

The Best Workflow For Importing Step Files In Solidworks While importing a large step file using 3d interconnect, you can use the enable filter filtering option in the file > open dialog box and apply filters before import. this lets you import only selected components of the file or model from the customized featuremanager design tree. For many solidworks users, working with imported geometry and non native file types is part of every workflow. in this blog, i want to discuss some of the ways to handle importing geometry like solidworks 3d interconnect, and some best practices and settings. Learn how to use solidworks to export and import step files with this guide. using the new step file filter feature, you will be able to selectively choose which parts of file you would like to import to save time and performance when importing. In the video tutorial above, we have a step file received from a vendor that we’d like to look at and potentially modify in solidworks. the best way to import a step file is through the “file” drop down menu. select “open” and change the file type to look for step files.

Importing Altium Step Files Into Solidworks Skigreenway Learn how to use solidworks to export and import step files with this guide. using the new step file filter feature, you will be able to selectively choose which parts of file you would like to import to save time and performance when importing. In the video tutorial above, we have a step file received from a vendor that we’d like to look at and potentially modify in solidworks. the best way to import a step file is through the “file” drop down menu. select “open” and change the file type to look for step files. Are you having difficulty importing files from other cad packages into solidworks? in this guide we will show you our reccomended steps to ensure successful imports every time. For step files, you can select the enable filter option to apply filters before import. this lets you import only selected components of the file or model from the customized featuremanager design tree. Regardless of what cad software you work with, at some point you will be confronted with the need to import a step file. solidworks 2024 offers some much needed improvements in the process for step files. step stands for standard for the exchange of product data and is also known as iso 10303. Importing a large step file is faster with improved performance depending on the number of objects that you select while applying filters. it also helps working with a simplified model.

Importing Altium Step Files Into Solidworks Simulation Ranggoogle Are you having difficulty importing files from other cad packages into solidworks? in this guide we will show you our reccomended steps to ensure successful imports every time. For step files, you can select the enable filter option to apply filters before import. this lets you import only selected components of the file or model from the customized featuremanager design tree. Regardless of what cad software you work with, at some point you will be confronted with the need to import a step file. solidworks 2024 offers some much needed improvements in the process for step files. step stands for standard for the exchange of product data and is also known as iso 10303. Importing a large step file is faster with improved performance depending on the number of objects that you select while applying filters. it also helps working with a simplified model.

Importing Altium Step Files Into Solidworks Student Insightsfasr Regardless of what cad software you work with, at some point you will be confronted with the need to import a step file. solidworks 2024 offers some much needed improvements in the process for step files. step stands for standard for the exchange of product data and is also known as iso 10303. Importing a large step file is faster with improved performance depending on the number of objects that you select while applying filters. it also helps working with a simplified model.
