Tech Tip How To Fix A Flat Pattern Issue In A Drawing Sheet

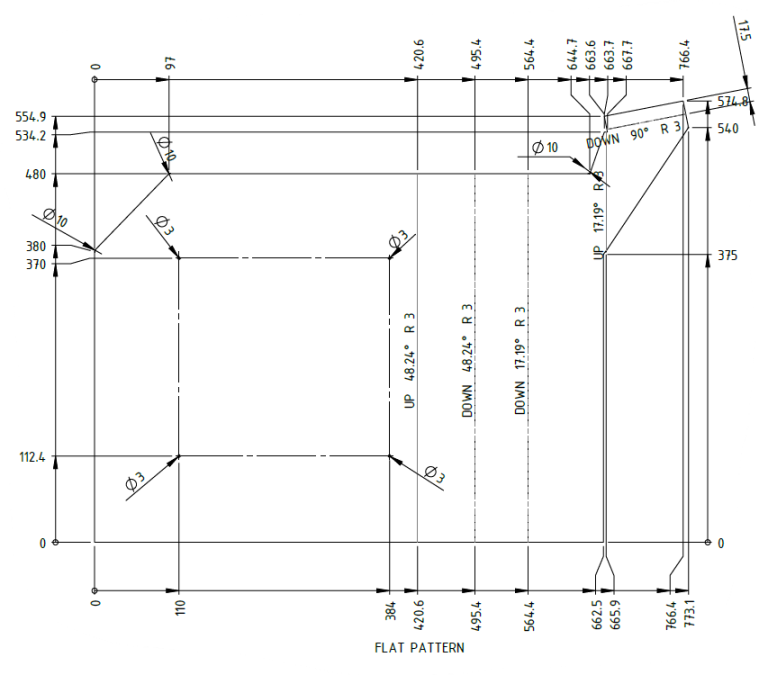

Drawing Flat Pattern Dynamic Engineering Consultants Perth Western In this week's tech tip, we show you how you can fix a standard error in the sheet metal component in solidworks. more. Have you ever experienced your sheet metal flat pattern not appear in solidworks drawings? in this video tech tip we talk about how to troubleshoot the problem and the most common solution.

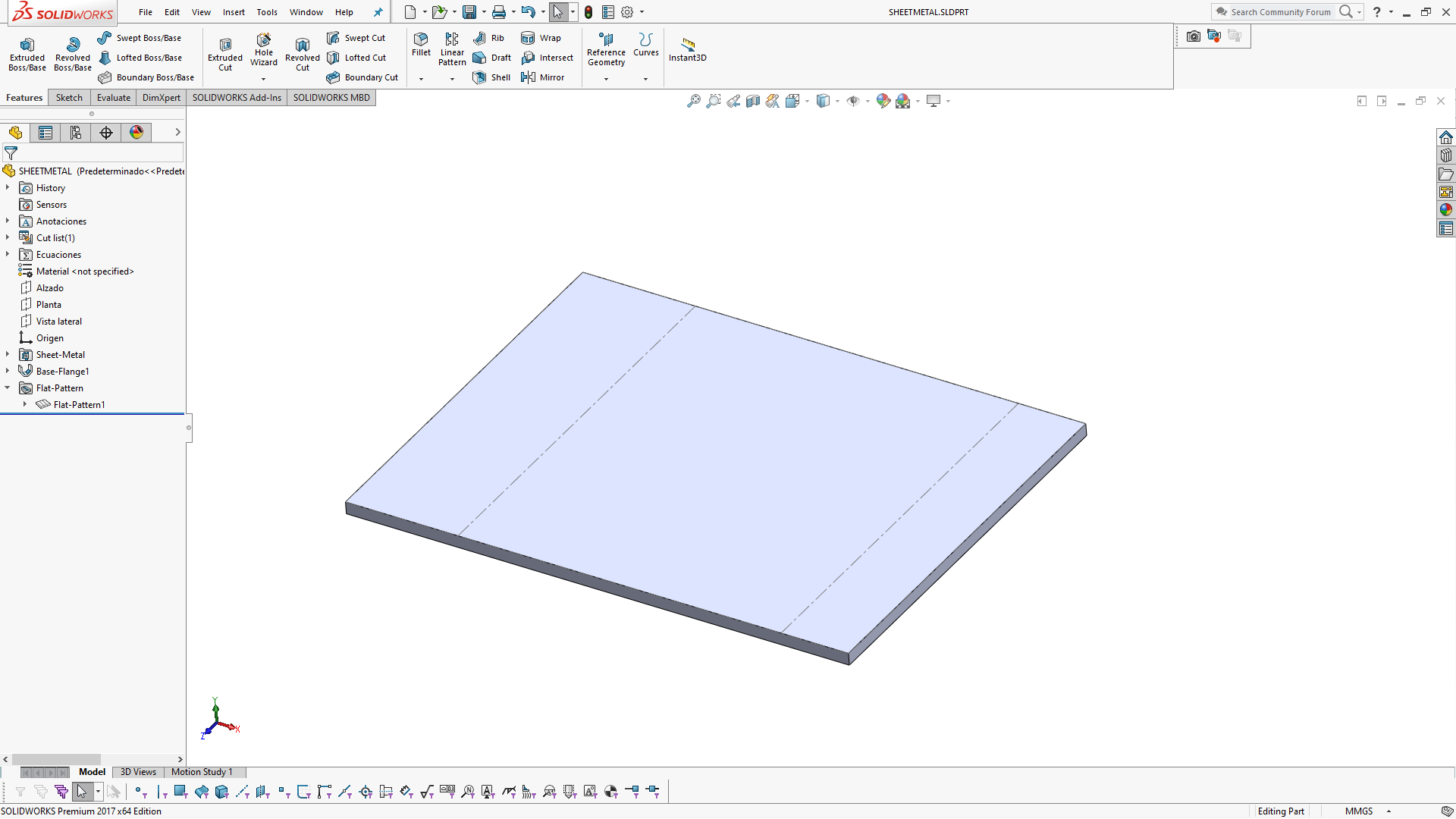

Flat Pattern Drawing Gfxspeak I have recently found a quicker fix for this problem. you just need to use the delete face tool with the heal box unchecked to remove a single face from the derived solid. Sometimes, you see your solidworks sheet metal flat pattern displayed in the folded state. this is usually caused by the default sm flat pattern derived configuration of the part file being in the folded state. We have recently started seeing issues cropping up where the flat pattern is not forming properly, as per the attached model. Once i create and save a drawing file for some assembly models which contains some sheet metal parts. as soon as reopened the drawing file again all the flat pattern drawing views return to the folded state. and i have attached the error message i receive for that. please tell me how to avoid this. hello mohammed!.

How To Fix Flat Pattern Issue In Drawing File Grabcad Groups We have recently started seeing issues cropping up where the flat pattern is not forming properly, as per the attached model. Once i create and save a drawing file for some assembly models which contains some sheet metal parts. as soon as reopened the drawing file again all the flat pattern drawing views return to the folded state. and i have attached the error message i receive for that. please tell me how to avoid this. hello mohammed!. Two ways you can fix this. add a corner relief feature. it's on the sheet metal tab in the corners menu. constant radius is probably what you want. expand the flat pattern folder at the bottom of your feature tree and edit the flat pattern feature. uncheck the corner treatment option. To fix this, we simply turn on this flatten feature while in the derived configuration. now if we go back to the drawing file the drawing view for the flat pattern is displayed correctly. This post discusses the causes of the solidworks flat pattern problem and possible solutions. additionally, we’ll show you how to quickly create a new flat pattern configuration from an existing one. This issue is often caused by the flattened configuration not properly being enabled using the flatten tool, but was instead enabled by changing the configuration to the flat pattern state.
