Solved Question 1for The Single Link Robot Arm System Given Chegg There are 3 steps to solve this one. given the parameters, the linearized equation not the question you’re looking for? post any question and get expert help quickly. Please find your resulting transfer function with system parameters, then substitute the given system parameters for final result. plot and explain the step response and pole zero map.

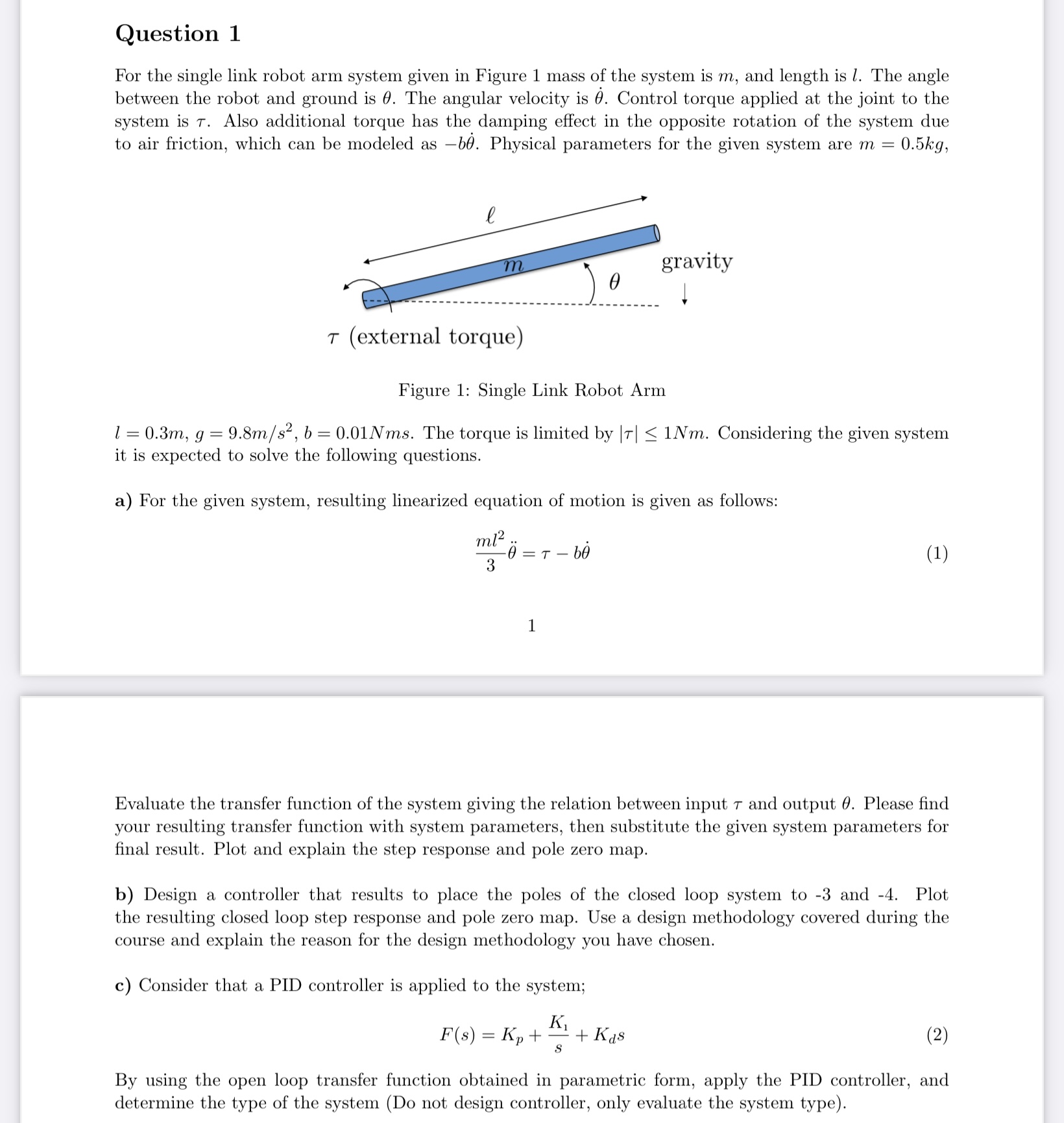

Solved For The Single Link Robot Arm System Given In Figure Chegg Please find your resulting transfer function with system parameters, then substitute the given system parameters for final result. plot and explain the step response and pole zero map. Figure 1 shows a single link robot arm which is modeled as a pendulum with a concentrated mass m. in other words, the moment of inertia of the robotic arm is equal to zero. A single link of a robot arm is shown in figure p3.40. the arm mass is m and its center of mass is located a distance l from the joint, which is driven by a motor torque tm through two pairs of spur gears. Question: for the single link robot arm system given in figure 1 mass of the system is m, and length is l. the anglebetween the robot and ground is θ. the angular velocity is θ˙. control torque applied at the joint to thesystem is τ.

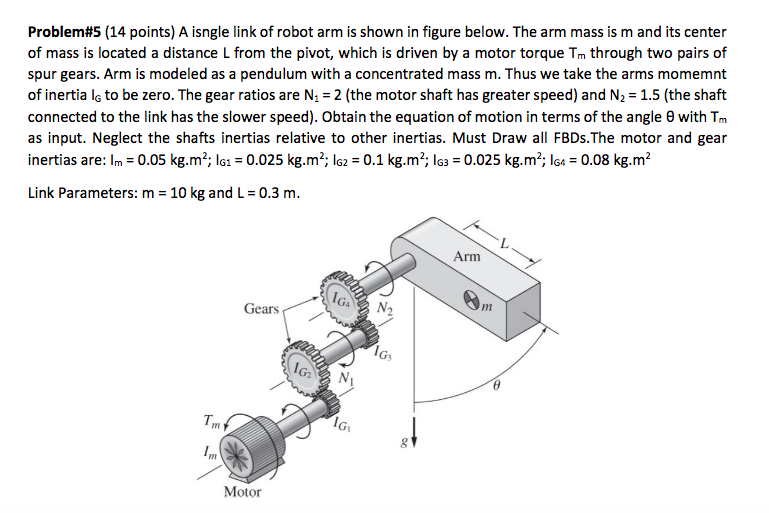

Solved A Single Link Of Robot Arm Is Shown In Figure Below Chegg A single link of a robot arm is shown in figure p3.40. the arm mass is m and its center of mass is located a distance l from the joint, which is driven by a motor torque tm through two pairs of spur gears. Question: for the single link robot arm system given in figure 1 mass of the system is m, and length is l. the anglebetween the robot and ground is θ. the angular velocity is θ˙. control torque applied at the joint to thesystem is τ. I'm studying these lecture notes on dynamic models of robot arm links, slides 33 36, where two examples are given for the kinetic energies for a single link and two link robot arm. Question: problem 1: simple robot arm (30 pts) a simple single link robotic arm is illustrated below. it has position and velocity feedback and is controlled through an input torque. To derive the linearized equations of motion (eoms) for the robotic arm and the armature circuit, we need to analyze the dynamics of the system step by step. this involves understanding the forces acting on the robotic arm and how the motor torque influences its motion. Please find your resulting transfer function with system parameters, then substitute the given system parameters for final result. plot and explain the step response and pole zero map.
Solved A Single Link Of A Robot Arm Is Shown In Figure Chegg I'm studying these lecture notes on dynamic models of robot arm links, slides 33 36, where two examples are given for the kinetic energies for a single link and two link robot arm. Question: problem 1: simple robot arm (30 pts) a simple single link robotic arm is illustrated below. it has position and velocity feedback and is controlled through an input torque. To derive the linearized equations of motion (eoms) for the robotic arm and the armature circuit, we need to analyze the dynamics of the system step by step. this involves understanding the forces acting on the robotic arm and how the motor torque influences its motion. Please find your resulting transfer function with system parameters, then substitute the given system parameters for final result. plot and explain the step response and pole zero map.
Solved 2 A Single Link Of A Robot Arm Is Shown Below The Chegg To derive the linearized equations of motion (eoms) for the robotic arm and the armature circuit, we need to analyze the dynamics of the system step by step. this involves understanding the forces acting on the robotic arm and how the motor torque influences its motion. Please find your resulting transfer function with system parameters, then substitute the given system parameters for final result. plot and explain the step response and pole zero map.
