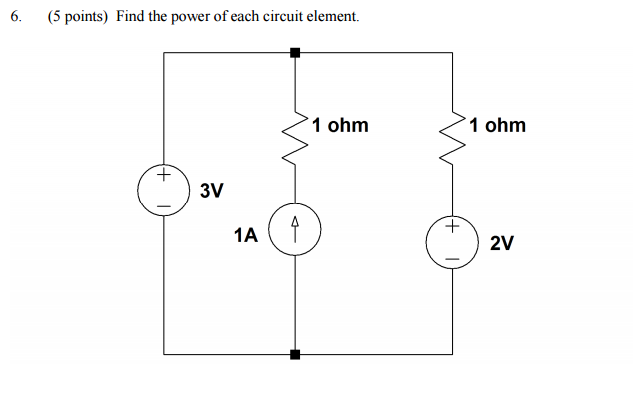

Solved Find The Power Of Each Circuit Element Chegg Our expert help has broken down your problem into an easy to learn solution you can count on. question: find the power of each circuit element. here’s the best way to solve it. find the power of each circuit element. not the question you’re looking for? post any question and get expert help quickly. answer to find the power of each circuit element. Hi! so i have a couple questions that i have already tried to solve that i think i am going in a little bit of the wrong direction with. so at first i am suppose to find the source current \$i\$: what i have tried to do seemed too simple. i made it so \$t=0\$. and so the voltage source was \$2\$ v. then i did a kvl and got \$i = 1\$a.
Solved Find The Power Of Each Circuit Element Chegg Problem set (1) solution problem 1 the figure shows a circuit with five elements. if p1 w, p2 60 w, p4 45 w, p5 30 w, calculate the power p3 received or delivered element 3. If the current is flowing from the negative terminal toward the positive terminal, the element is providing generating power. only add up the power generating elements to obtain the answer. Using ohm's law, we can calculate the current as follows: i = v r i = 12 v 6 Ω i = 2 amps now that we know the current, we can calculate the power in each circuit element using the formula p = i^2 * r, where p is the power, i is the current, and r is the resistance. For each element, calculate the power using the formula p = vi, where p is power, v is voltage, and i is current. if the current flows from the positive to the negative terminal of an element, the element is absorbing power.
Solved Find The Power Of Each Circuit Element Chegg Using ohm's law, we can calculate the current as follows: i = v r i = 12 v 6 Ω i = 2 amps now that we know the current, we can calculate the power in each circuit element using the formula p = i^2 * r, where p is the power, i is the current, and r is the resistance. For each element, calculate the power using the formula p = vi, where p is power, v is voltage, and i is current. if the current flows from the positive to the negative terminal of an element, the element is absorbing power. Now we just have to watch polarity to determine if power is being supplied (> 0) by the source or being absorbed (< 0) by the source. ( 5 points). find the power of each circuit element. not the question you’re looking for? post any question and get expert help quickly. The power of v3, think about that for a moment. if you take a voltage source like v3 and it delivers power to a load like a resistor, what direction is the current flowing? what direction is the current flowing in this circuit? is it the same direction or the opposite direction. Find step by step engineering solutions and the answer to the textbook question calculate the power absorbed by each element in the circuit in the figure.
Solved Find The Power Of Each Circuit Element Chegg Now we just have to watch polarity to determine if power is being supplied (> 0) by the source or being absorbed (< 0) by the source. ( 5 points). find the power of each circuit element. not the question you’re looking for? post any question and get expert help quickly. The power of v3, think about that for a moment. if you take a voltage source like v3 and it delivers power to a load like a resistor, what direction is the current flowing? what direction is the current flowing in this circuit? is it the same direction or the opposite direction. Find step by step engineering solutions and the answer to the textbook question calculate the power absorbed by each element in the circuit in the figure.
