Solved Design A 4 16 Decoder By Using 5 2 4 Decoders The Chegg

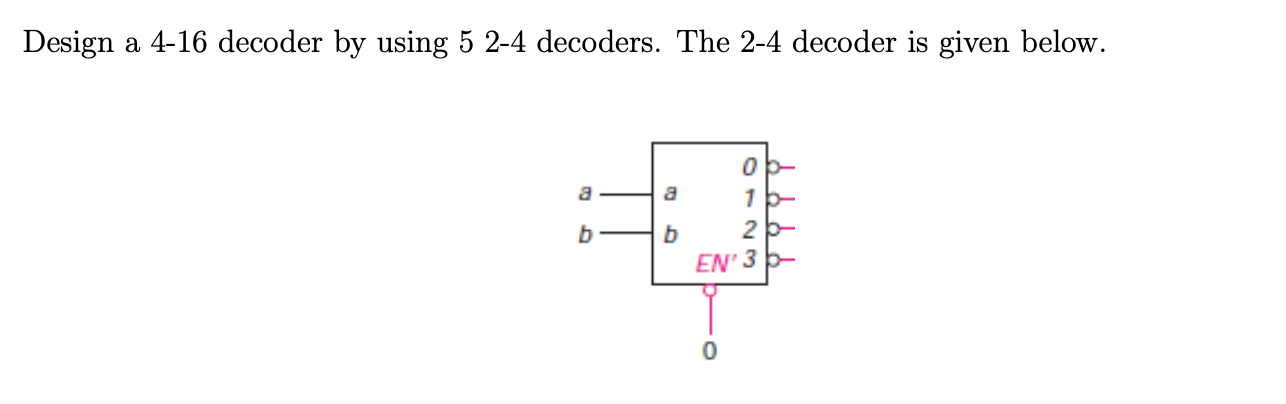

Solved Design A 4 16 Decoder By Using 5 2 4 Decoders The Chegg Live chat replay q. 4.26: construct a 4 to 16 line decoder with five 2 to 4 line decoders with enable. please subscribe to my channel. importance is given to making concepts easy. There are 4 steps to solve this one. a 4 x 16 decoder is a digital circuit which has 4 input lines and 16 output lines, w not the question you’re looking for? post any question and get expert help quickly.

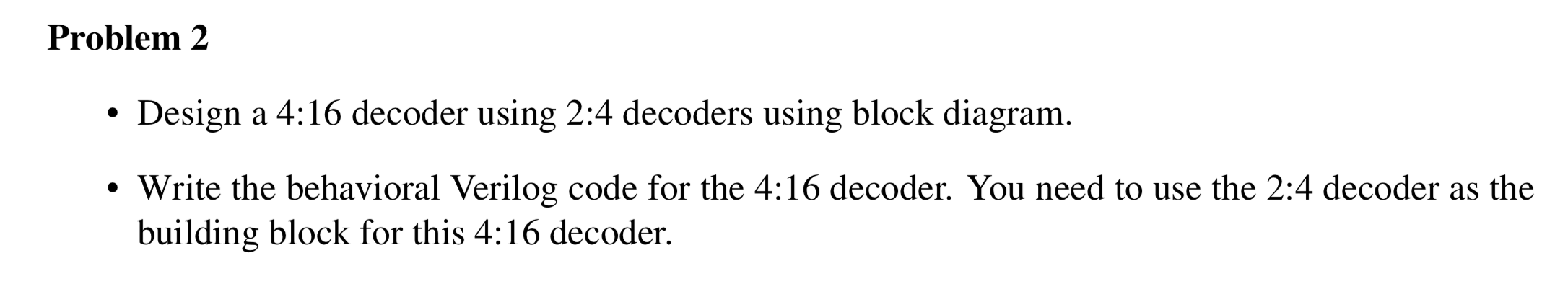

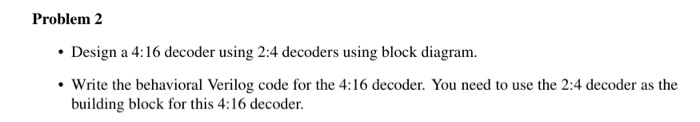

Solved Problem 2 Design A 4 16 Decoder Using 2 4 Decoders Chegg In the case of a 4 to 16 decoder, multiple 2 to 4 decoders can be arranged in a two layer configuration where one decoder is used to generate enable signals for the others, effectively splitting the decoding process into manageable parts and simplifying the overall design. You'll need to complete a few actions and gain 15 reputation points before being able to upvote. upvoting indicates when questions and answers are useful. what's reputation and how do i get it? instead, you can save this post to reference later. is it possible to create a 4 16 decoder using five 2 4 decoders without enable inputs?. By connecting the decoders in this way, we can generate a 4 bit input code to select one of the 16 outputs. each 2 to 4 decoder decodes a 2 bit binary code, and the cascading arrangement allows for the decoding of a 4 bit binary code. Exercise 4.26 4 to 16 line using five 2 to 4 line decoders etis 3.61k subscribers subscribe.

Solved Problem 2 Design A 4 16 Decoder Using 2 4 Decoders Chegg By connecting the decoders in this way, we can generate a 4 bit input code to select one of the 16 outputs. each 2 to 4 decoder decodes a 2 bit binary code, and the cascading arrangement allows for the decoding of a 4 bit binary code. Exercise 4.26 4 to 16 line using five 2 to 4 line decoders etis 3.61k subscribers subscribe. Homework statement consider the dc electromagnetic actuator shown in figure 1 which is constructed using hotrolled silicon steel laminations. all dimensions shown are in millimeters. Implement the boolean function f (a,b,c,d) = ∑ (0,2,5,7,10,12,13) a) with an 8x1 multiplexer and a single inverter with variable d as its input. b) with an 8x1 multiplexer and a single inverter with variable a as its input. c) with a 4x1 multiplexer. your solution’s ready to go!. Hierarchical design involves constructing a larger and more complex digital circuit by combining smaller, simpler circuits, such as using 2 to 4 decoders to build a 4 to 16 decoder. The five 2 to 4 decoder can be connected as shown below to implement the 4 to 16 line decoder. in this block diagram, one of the five 2 to 4 decoder is used for selecting one of the other four 2 to 4 decoders and thus its enable is always on.
