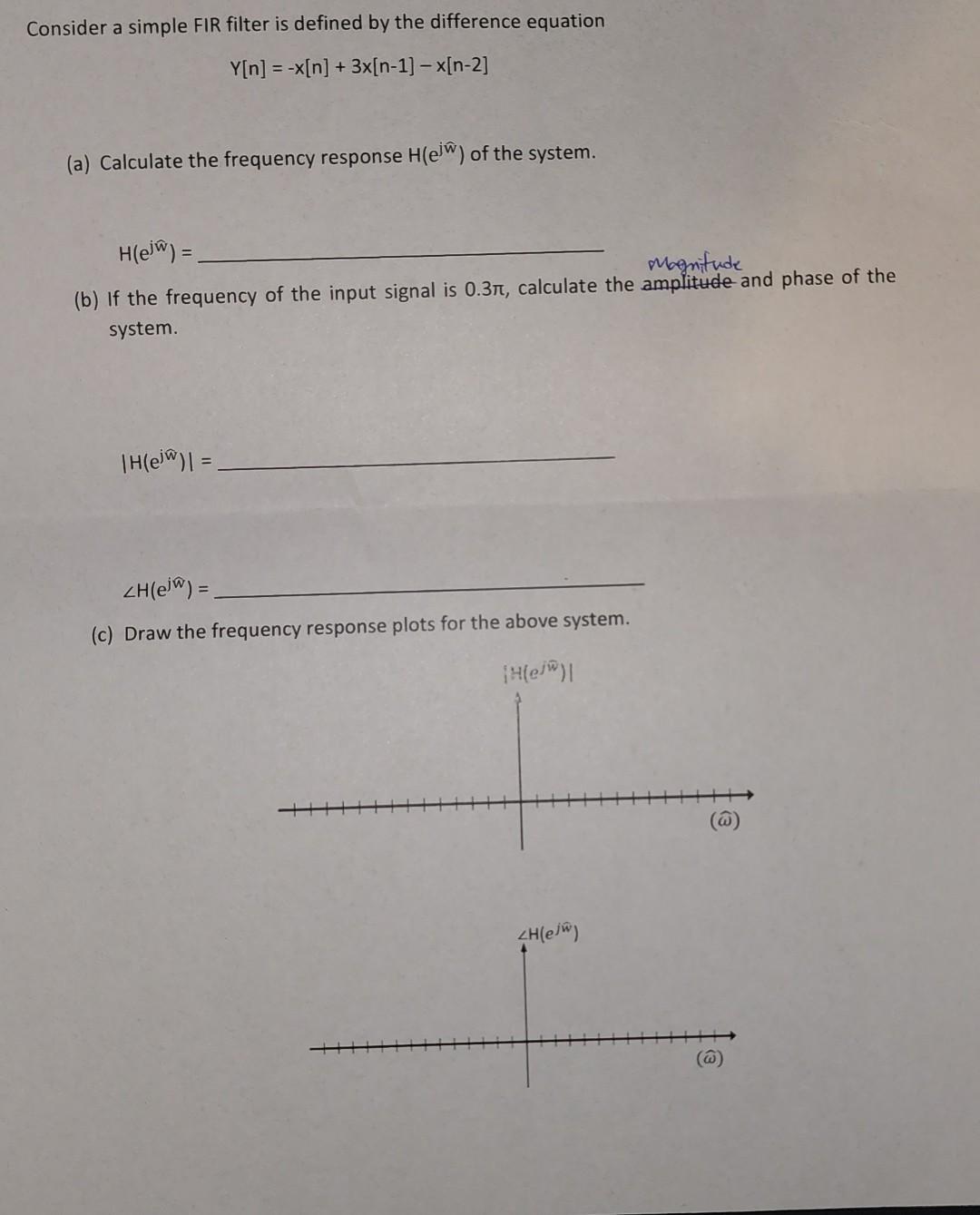

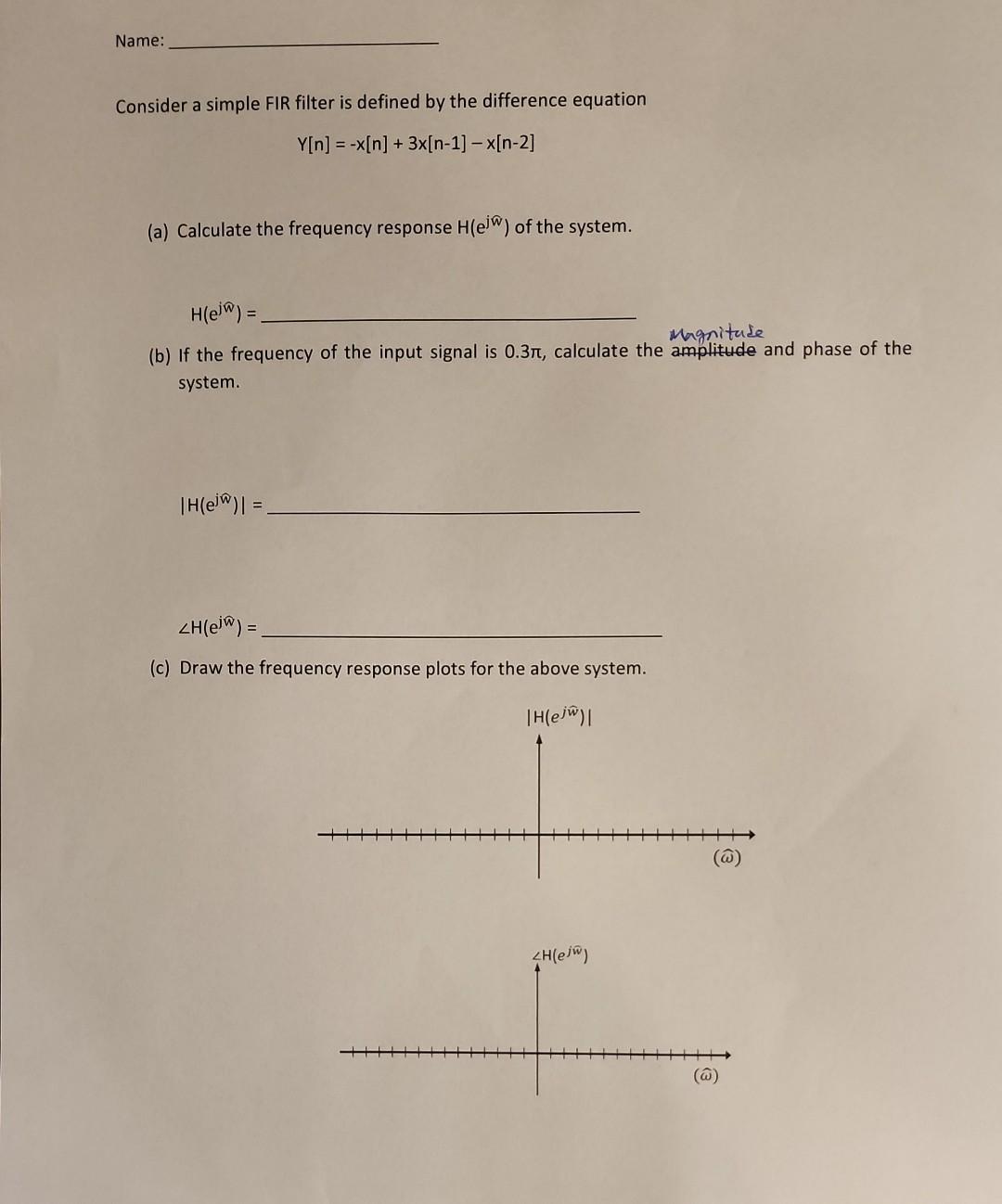

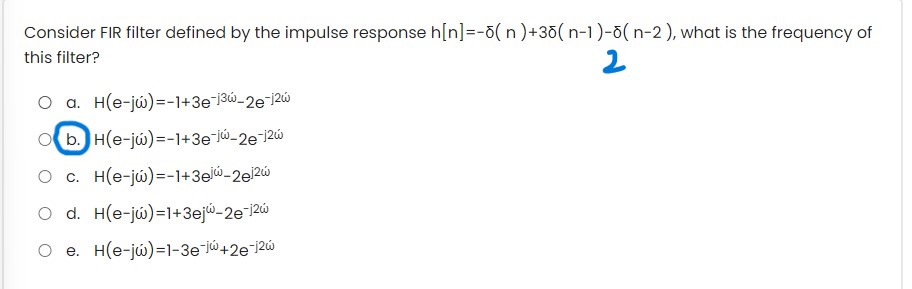

Solved Consider A Simple Fir Filter Is Defined By The Chegg Our expert help has broken down your problem into an easy to learn solution you can count on. question: consider a simple fir filter is defined by the difference equation y [n]=−x [n] 3x [n−1]−x [n−2] (a) calculate the frequency response h (ejω) of the system. By choosing the coefficients of the difference equation, the shape of the frequency response vs frequency can be developed. recall that two systems cascaded together, then the overall impulse response is the convolution of the two individual impulse responses.

Solved Consider A Simple Fir Filter Is Defined By The Chegg Consider an fir filter with system function h (z) = 1 2.88z^ ( 1) 3.404z^ ( 2) 1.74z^ ( 3) 0.4z^ ( 4). sketch the direct form and lattice realizations of the filter and determine in detail the corresponding input output equations. Let the input to this filter be a sum of 3 cosine sequences of angular frequencies: 0.2 rad samples, 0.5 rad samples, and 0.8 rad samples, respectively. determine the impulse response coefficients so that the filter passes only the midfrequency component of the input. Suppose we want to design a digital filter for a signal having bandwidth of 8 khz, and we have to use a 5 pole butterworth filter (commercially available for low cost) for both antialiasing and reconstruction filters. Multi system magnitude equalization we are given m frequency responses gk : [0, π] → c design fir equalizer h so that |gk(ω)h (ω)| ≈ constant:.

Solved Consider A Simple Fir Filter Is Defined By The Chegg Suppose we want to design a digital filter for a signal having bandwidth of 8 khz, and we have to use a 5 pole butterworth filter (commercially available for low cost) for both antialiasing and reconstruction filters. Multi system magnitude equalization we are given m frequency responses gk : [0, π] → c design fir equalizer h so that |gk(ω)h (ω)| ≈ constant:. Lowpass filter the accelerometer data now assume that gyroscope reading is zero (i.e. steady state tilt), g[n] = 0. now the system is exactly the same as that in lecture 12, slide 12. therefore the accelerometer data a[n] is lowpass filtered!xx. There are 2 steps to solve this one. consider a simple fir filter is defined by the difference equation y [n]= −x[n] 3x[n−1]−x[n−2] (a) calculate the frequency response h(ejw^) of the system. The simplest design method for fir filters is impulse response truncation (irt), but unfortunately it has undesirable frequency domain characteristics, owing to the gibb’s phenomenon. the second design method for a fir filter that we shall cover in this chapter is the windowing technique. The problem starts with the analysis of a simple analog signal x (t) and its interaction with a finite impulse response (fir) lowpass filter, highlighting the spectral attributes of the original signal x (t) and the changes this signal undergoes when it passes through the filter.

Solved Consider A Simple Fir Filter Is Defined By The Chegg Lowpass filter the accelerometer data now assume that gyroscope reading is zero (i.e. steady state tilt), g[n] = 0. now the system is exactly the same as that in lecture 12, slide 12. therefore the accelerometer data a[n] is lowpass filtered!xx. There are 2 steps to solve this one. consider a simple fir filter is defined by the difference equation y [n]= −x[n] 3x[n−1]−x[n−2] (a) calculate the frequency response h(ejw^) of the system. The simplest design method for fir filters is impulse response truncation (irt), but unfortunately it has undesirable frequency domain characteristics, owing to the gibb’s phenomenon. the second design method for a fir filter that we shall cover in this chapter is the windowing technique. The problem starts with the analysis of a simple analog signal x (t) and its interaction with a finite impulse response (fir) lowpass filter, highlighting the spectral attributes of the original signal x (t) and the changes this signal undergoes when it passes through the filter.

Solved Consider A Simple Fir Filter Is Defined By The Chegg The simplest design method for fir filters is impulse response truncation (irt), but unfortunately it has undesirable frequency domain characteristics, owing to the gibb’s phenomenon. the second design method for a fir filter that we shall cover in this chapter is the windowing technique. The problem starts with the analysis of a simple analog signal x (t) and its interaction with a finite impulse response (fir) lowpass filter, highlighting the spectral attributes of the original signal x (t) and the changes this signal undergoes when it passes through the filter.
