Pptx Ee422 Signals And Systems Laboratory Infinite Impulse Response Example: with function butter, design an iir butterworth band pass filter for signal sampled at 20 mhz with a sharp passband from 3.5 mhz to 9mhz. use order 5 and verify design of phase and magnitude spectra with freqz command. Presentation on theme: "ee422 signals and systems laboratory infinite impulse response (iir) filters kevin d. donohue electrical and computer engineering university of kentucky."— presentation transcript:.

Signals And Systems Lab 2 Signals And Systems Eee223 Signals And This document discusses impulse response in signals and systems. it defines an impulse signal as having a value of zero except at t=0, where it has an infinitely high value. Textbook: mcclellan, schafer & yoder, signal processing first, 2003 linear systems and signals topics 11 infinite impulse response (iir) filters– spfirst. Dependence on previous output(s) generally implies that the impulse response has infinite length (hence the name: iir filter). iir filters are not necessarily stable: the stability depends on the coefficients ak. Impulse response method for fir filter design approach: • create ideal filter specifications for the magnitude response. • generate impulse response through sinc function relationship.

Solved Eee 214 Signals And Systems Spring 2022 2023 Homework Chegg Dependence on previous output(s) generally implies that the impulse response has infinite length (hence the name: iir filter). iir filters are not necessarily stable: the stability depends on the coefficients ak. Impulse response method for fir filter design approach: • create ideal filter specifications for the magnitude response. • generate impulse response through sinc function relationship. The zero input response, which is what the system does with no input at all. this is due to initial conditions, such as energy stored in capacitors and inductors. The lab reports are due in the next lab meeting after the lab where measurements were completed, demos must be performed within the current lab meeting time. ee422g topics: labs will be implemented in matlab, simulink, and labview. Characterize input output relationships of linear time invariant discrete time systems using impulse response and transfer function representations, model random variation with distribution functions. 10 ideal low pass filterresponse indicates the ideal low pass filter is non causal and infinite. if applied to design a real time filter design process, need to approximate ….

Eie412 Lecture Modules Contents 2021 22 Pdf Cybernetics The zero input response, which is what the system does with no input at all. this is due to initial conditions, such as energy stored in capacitors and inductors. The lab reports are due in the next lab meeting after the lab where measurements were completed, demos must be performed within the current lab meeting time. ee422g topics: labs will be implemented in matlab, simulink, and labview. Characterize input output relationships of linear time invariant discrete time systems using impulse response and transfer function representations, model random variation with distribution functions. 10 ideal low pass filterresponse indicates the ideal low pass filter is non causal and infinite. if applied to design a real time filter design process, need to approximate ….

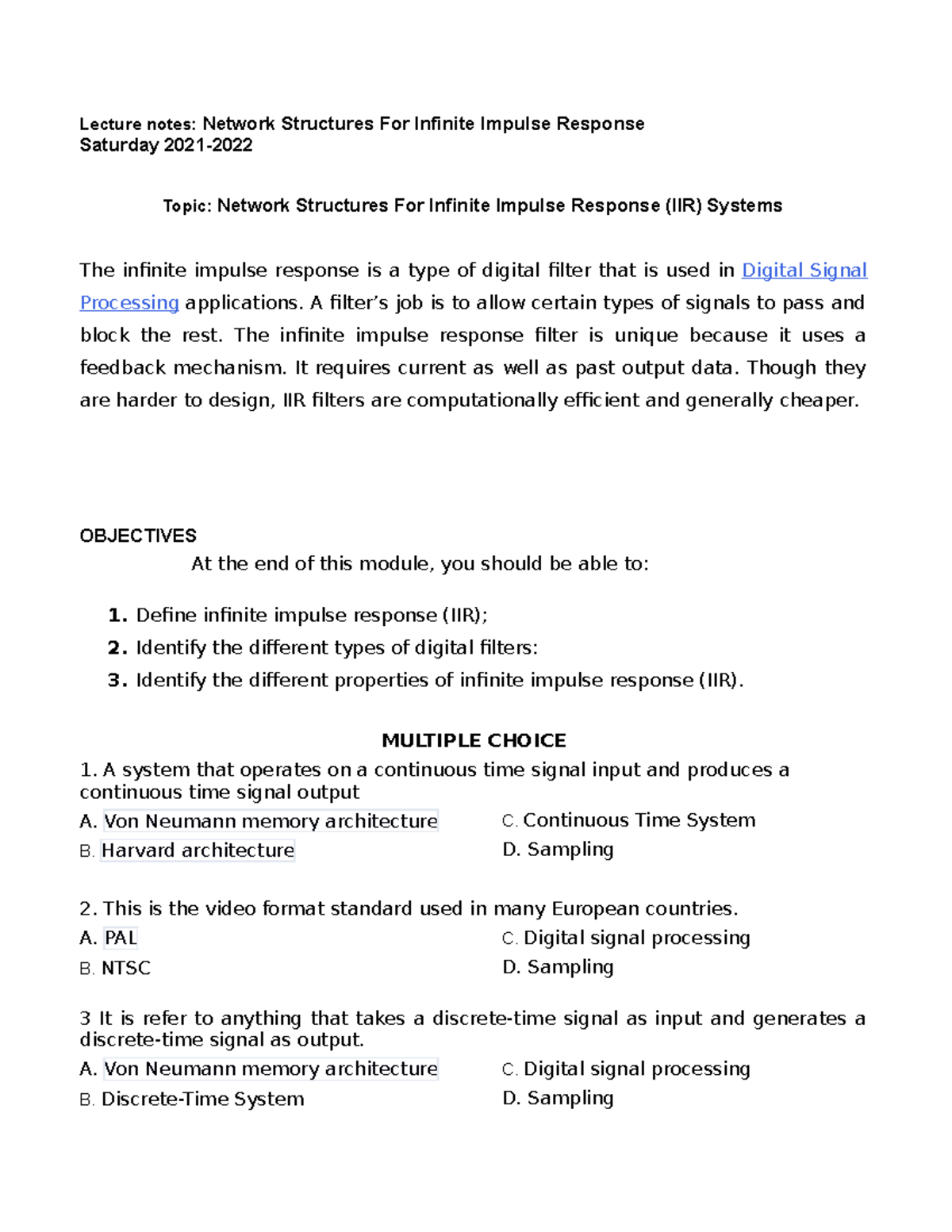

Lecture Notes Network Structures For Infinite Impulse Response System Characterize input output relationships of linear time invariant discrete time systems using impulse response and transfer function representations, model random variation with distribution functions. 10 ideal low pass filterresponse indicates the ideal low pass filter is non causal and infinite. if applied to design a real time filter design process, need to approximate ….
