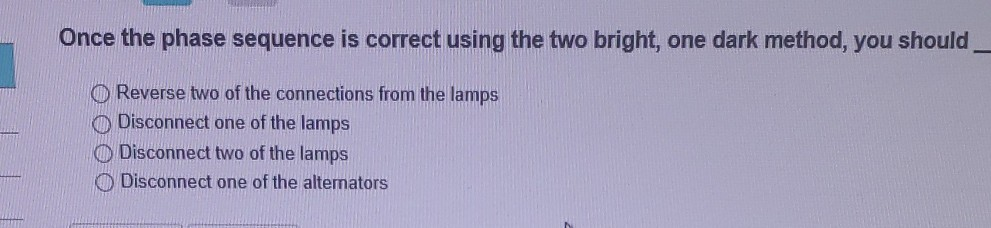

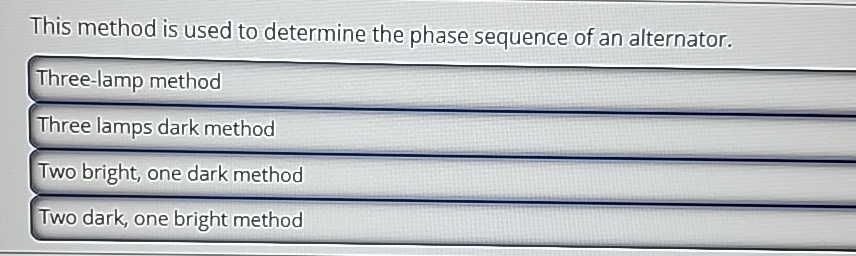

Solved This Method Is Used To Determine The Phase Sequence Chegg No description has been added to this video. The two bright one dark method is another way to check synchronization by arranging the lamps differently. in this approach, the operator watches for a pattern where two lamps glow brightly, and one lamp remains dark.
Solved Once The Phase Sequence Is Correct Using The Two Chegg In this method, the lamps are connected across the phases such as a 1 is connected to b 2, b 1 is connected to c 2, and c 1 is connected to a 2. if all the three lamps get bright and dark together, this means that the phase sequence is correct. In this topic, you study dark lamp method of synchronization of generator (or alternator). fig. 4.1 shows the necessary circuit diagram for synchronizing three phase alternators by this method. If the phase sequence of alternator b and grid is not correct then the lamps will flicker one by one. then the phase sequence is corrected by interchanging any two leads of incoming alternator b. In this method, the lamps are connected asymmetrically as shown (fig). if the phase sequence is correct, the lamps brighten and grow dim in sequence. two sets of star vectors will rotate at unequal speeds if the frequencies of the two machines are different (fig.).
Electrical Standards Dark Lamp Method Of Synchronization Of Machines If the phase sequence of alternator b and grid is not correct then the lamps will flicker one by one. then the phase sequence is corrected by interchanging any two leads of incoming alternator b. In this method, the lamps are connected asymmetrically as shown (fig). if the phase sequence is correct, the lamps brighten and grow dim in sequence. two sets of star vectors will rotate at unequal speeds if the frequencies of the two machines are different (fig.). The resultant voltage is sometimes maximum and sometimes minimum. hence, the lamps will flicker, sometimes dark and sometimes bright. synchronization is done at the middle of the dark period. this method of synchronizing is known as dark lamp method. The phase sequence is synchronized on a particular sequence of alternatively varying brightness of three lamps. for perfect synchronization, the switch is closed when lamp l 1 is dark while lamps l 2 and l 3 are equally bright. In this lamps dark method, the lamps are arranged as shown in the below figure. the alternator synchronised (which is also called incoming alternator) consists of two lamps connected across the switch terminals of the same phase. This is "lamp methods to check synchronism phase sequence check dark lamp method" by virtual guru on vimeo, the home for high quality videos and the….
Electrical Standards Dark Lamp Method Of Synchronization Of Machines The resultant voltage is sometimes maximum and sometimes minimum. hence, the lamps will flicker, sometimes dark and sometimes bright. synchronization is done at the middle of the dark period. this method of synchronizing is known as dark lamp method. The phase sequence is synchronized on a particular sequence of alternatively varying brightness of three lamps. for perfect synchronization, the switch is closed when lamp l 1 is dark while lamps l 2 and l 3 are equally bright. In this lamps dark method, the lamps are arranged as shown in the below figure. the alternator synchronised (which is also called incoming alternator) consists of two lamps connected across the switch terminals of the same phase. This is "lamp methods to check synchronism phase sequence check dark lamp method" by virtual guru on vimeo, the home for high quality videos and the….
