Half Wave Rectifier Circuit With Capacitor Filter Half wave rectifier with capacitor filter – when a sinusoidal alternating voltage is rectified, the resultant waveform is a series of positive (or negative) half cycles of the input waveform; it is not direct voltage. to convert to direct voltage (dc), a smoothing circuit or filter must be employed. To study the working principle and performance characteristics of a half wave rectifier with capacitive filter and to analyze the effect of the capacitive filter on the output waveform, ripple voltage, and rectification efficiency.

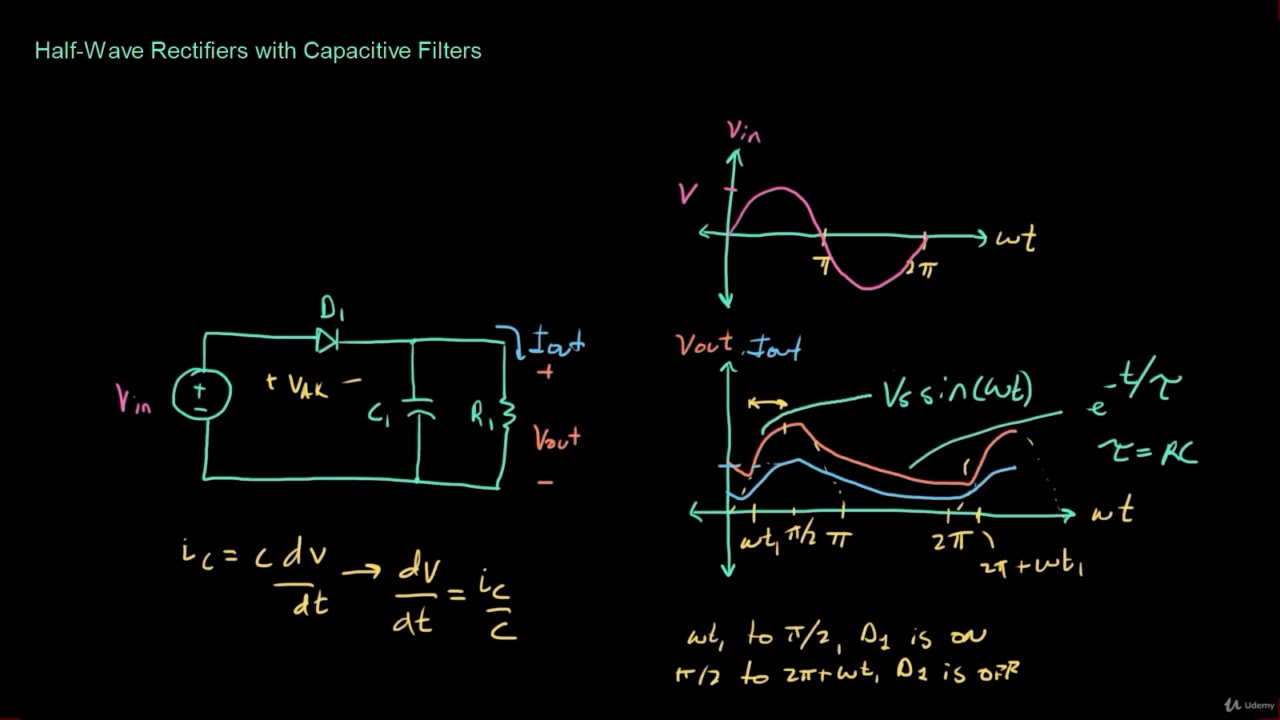

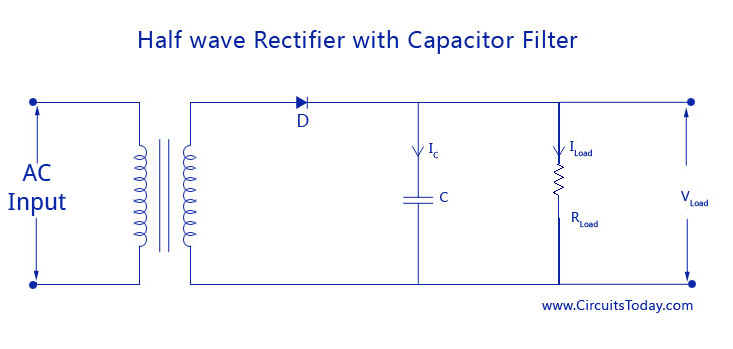

Half Wave Rectifier Circuit With Capacitor Filter The effectiveness of the capacitor filter is gauged by the variation in the output voltage. this variation is represented by the difference between the maximum and minimum output voltages, known as the peak to peak ripple voltage. The document discusses half wave rectifiers with capacitor filters. it provides analysis of the voltage and current waveforms, including expressions for output voltage, ripple voltage, capacitor current, and peak diode current. The simplest rectifier is a half wave rectifier with a capacitor filter. the following diagram shows the half wave rectifier circuit where the diode, load, and sinusoidal ac source are connected. The main function of the capacitor, as well as an inductor in this circuit, is, a capacitor allows the ac and blocks the dc, whereas an inductor permits only dc components to supply and blocks ac. this article discusses capacitor filter using half wave rectifier and full wave rectifier.

Half Wave Rectifier Circuit With Capacitor Filter The simplest rectifier is a half wave rectifier with a capacitor filter. the following diagram shows the half wave rectifier circuit where the diode, load, and sinusoidal ac source are connected. The main function of the capacitor, as well as an inductor in this circuit, is, a capacitor allows the ac and blocks the dc, whereas an inductor permits only dc components to supply and blocks ac. this article discusses capacitor filter using half wave rectifier and full wave rectifier. In this tutorial, a filter made up of a combination of resistor and capacitor is explained. in the below circuit diagram, the capacitor c is connected in shunt with load resistor (rl). This type of circuit not only converts ac voltage into dc, but it also helps reduce noise and distortion in the output and makes for better overall performance. A capacitor or an inductor can be used as a filter – but half wave rectifier with capacitor filter is most commonly used. the circuit diagram below shows how a capacitive filter is can be used to smoothen out a pulsating dc waveform into a constant dc waveform. Half wave rectifier with ‘c’ filter: capacitor filter is discusssed. in the capacitor input filter circuit, the output of half wave rectifier is passed through a.

Half Wave Rectifier Circuit With Capacitor Filter In this tutorial, a filter made up of a combination of resistor and capacitor is explained. in the below circuit diagram, the capacitor c is connected in shunt with load resistor (rl). This type of circuit not only converts ac voltage into dc, but it also helps reduce noise and distortion in the output and makes for better overall performance. A capacitor or an inductor can be used as a filter – but half wave rectifier with capacitor filter is most commonly used. the circuit diagram below shows how a capacitive filter is can be used to smoothen out a pulsating dc waveform into a constant dc waveform. Half wave rectifier with ‘c’ filter: capacitor filter is discusssed. in the capacitor input filter circuit, the output of half wave rectifier is passed through a.
