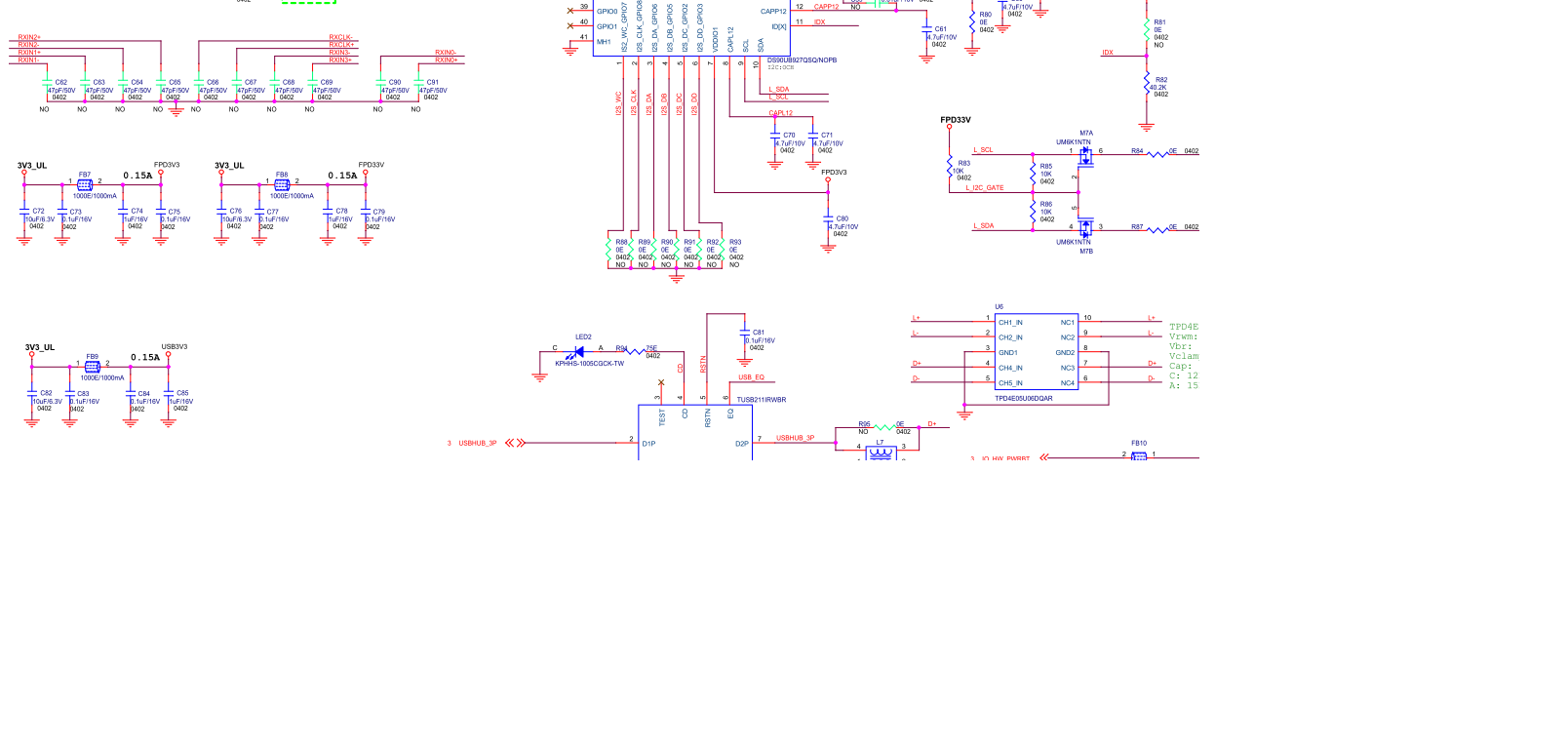

Ds90uh948 Q1 Function Block And Schematic Help Interface Forum Part number: ds90uh948 q1 hi team, this is a block diagram for discussions with customer. the attachment has already complete the schematic part. could you help. Q1: ds90uh948 not only be configured by i o pin , but also by register through i2c , do we need a i2c flash for initial register program? or it should be program by host through hsd?.
Ds90uh948 Q1 Function Block And Schematic Help Interface Forum The ds90uh948 q1 is a fpd link iii deserializer which, in conjunction with the ds90uh949 947 929 q1 serializers, converts 1 lane or 2 lane fpd link iii streams into a fpd link (openldi) interface. Could you give me a specific situation which could cause this? is the tca9539 only handling the two signals in the diagram? i'm not sure why an i o expander is needed. my assumption so far is that you want to free up the 948 from talking to the i o expander to communicate with the mcu. Product compliance have a question? please visit the help center. for questions about a specific order, please log in to your account. if you encounter further problems, please contact us on 800 346 6873 or email help@mouser . The ds90uh948 q1 is a fpd link iii deserializer which, in conjunction with the ds90uh949a 949 947 q1 serializers, converts 1 lane or 2 lane fpd link iii streams into a fpd link (openldi) interface.
Ds90ub927q Q1 Help Review Schematic Interface Forum Interface Ti Product compliance have a question? please visit the help center. for questions about a specific order, please log in to your account. if you encounter further problems, please contact us on 800 346 6873 or email help@mouser . The ds90uh948 q1 is a fpd link iii deserializer which, in conjunction with the ds90uh949a 949 947 q1 serializers, converts 1 lane or 2 lane fpd link iii streams into a fpd link (openldi) interface. View ds90uh948 q1 by texas instruments datasheet for technical specifications, dimensions and more at digikey. Part number: ds90uh948 q1 hi, i want to develop ds90uh948 repeater board. i have searched but was not able to find a reference schematic for the same. i want. The ds90uh949a q1 is an hdmi to fpd link iii serializer which, in conjunction with the ds90uh940 q1 ds90uh948 q1 deserializers, takes the data from hdmi serial stream and translates it into either single or dual lane fpd link iii interface. We are using the ds90uh947 q1 & ds90uh948 q1. it consists of main set and monitor as shown in the figure below. rosenberger hds cable is used as the connection cable. the problem occurs when the length of the rosenberger cable is long.
Ds90uh949 Q1 Help To Review Customer S Schematic For Ds90uh948 And View ds90uh948 q1 by texas instruments datasheet for technical specifications, dimensions and more at digikey. Part number: ds90uh948 q1 hi, i want to develop ds90uh948 repeater board. i have searched but was not able to find a reference schematic for the same. i want. The ds90uh949a q1 is an hdmi to fpd link iii serializer which, in conjunction with the ds90uh940 q1 ds90uh948 q1 deserializers, takes the data from hdmi serial stream and translates it into either single or dual lane fpd link iii interface. We are using the ds90uh947 q1 & ds90uh948 q1. it consists of main set and monitor as shown in the figure below. rosenberger hds cable is used as the connection cable. the problem occurs when the length of the rosenberger cable is long.
Ds90uh949 Q1 Help To Review Customer S Schematic For Ds90uh948 And The ds90uh949a q1 is an hdmi to fpd link iii serializer which, in conjunction with the ds90uh940 q1 ds90uh948 q1 deserializers, takes the data from hdmi serial stream and translates it into either single or dual lane fpd link iii interface. We are using the ds90uh947 q1 & ds90uh948 q1. it consists of main set and monitor as shown in the figure below. rosenberger hds cable is used as the connection cable. the problem occurs when the length of the rosenberger cable is long.
