Regenerative Circuits Power Motion A regenerative (regen) block, plate, or valve is a hydraulic manifold that creates a closed loop flow path between the rod side and blind side of a cylinder during extension. instead of returning all rod side fluid to the tank, it is redirected into the blind side port. What is a regenerative circuit? a circuit is said to be operating on the regenerative principle when the fluid returning from another end of the cylinder is forced into the head end of the cylinder.
Application Of Regenerative Hydraulic Circuit Wiring Draw And Schematic Because the hrpess for construction machinery still have the problems of large size, high price and circuit interference, this paper has developed the research of the novel hrpess from the perspective of optimizing the hydraulic circuit and hydraulic components. The document describes how a regenerative circuit works to increase the extension speed of a double acting hydraulic cylinder. it does this by blocking one port and creating a bypass connection, allowing fluid from the retracting stroke to assist in the extending stroke. For the research, a basic hydraulic circuit and a regenerative circuit are designated and compared both with their results. When working with a fixed flow rate but aiming to increase the speed of a hydraulic cylinder, regenerative circuits are a common solution. how does regenerative operation work? the principle involves redirecting oil from the rod (minus) side of the cylinder back to the piston (plus) side.

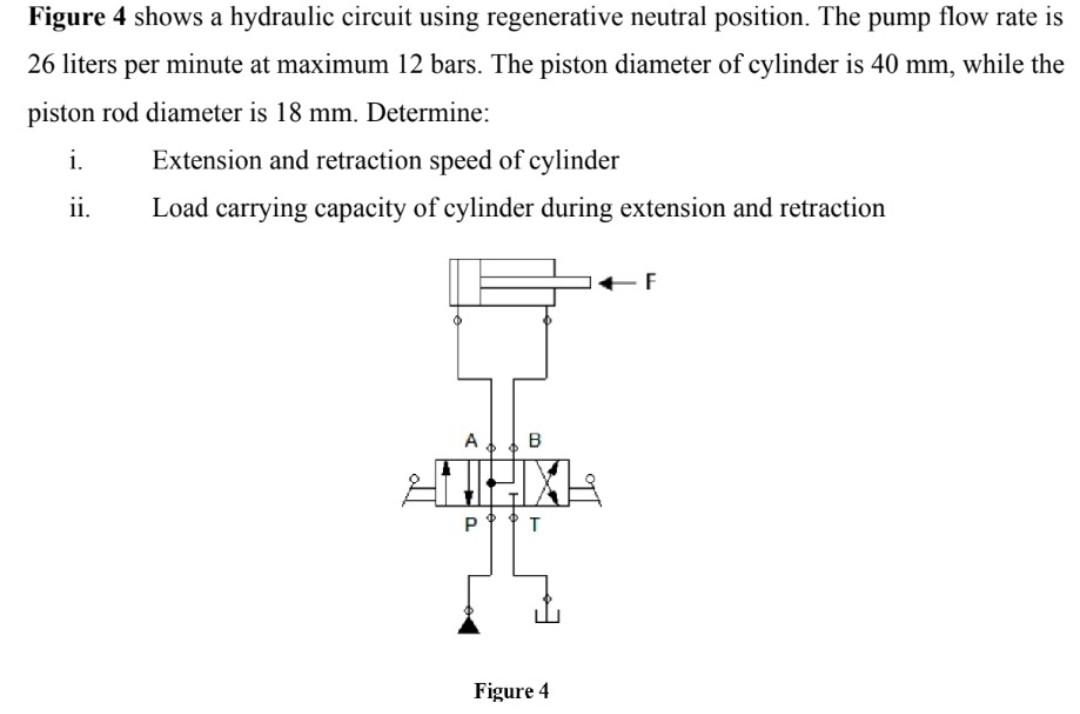

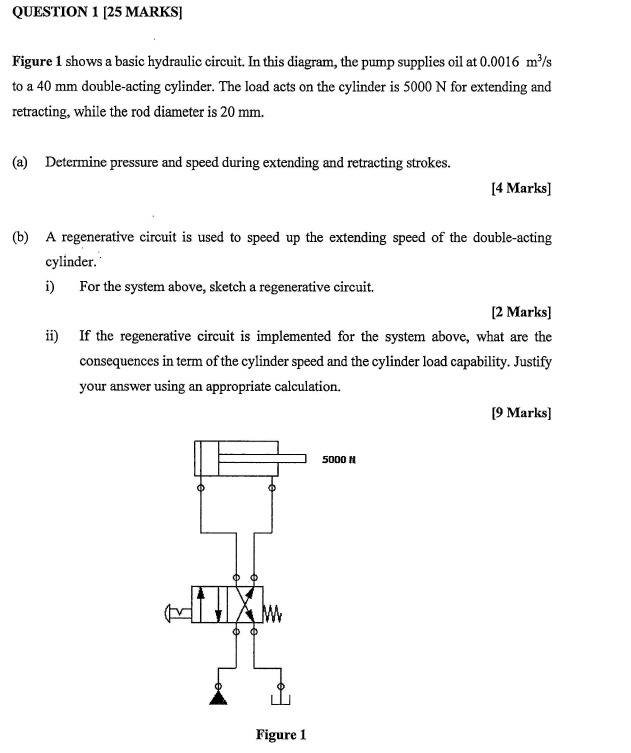

Application Of Regenerative Hydraulic Circuit Wiring Draw And Schematic For the research, a basic hydraulic circuit and a regenerative circuit are designated and compared both with their results. When working with a fixed flow rate but aiming to increase the speed of a hydraulic cylinder, regenerative circuits are a common solution. how does regenerative operation work? the principle involves redirecting oil from the rod (minus) side of the cylinder back to the piston (plus) side. The objective of this research work is to increase the efficiency of a hydraulic circuit by introducing a concept of regenerative circuit. a regenerative circuit is a system that is used to speed up the extension stroke of the double acting single rod hydraulic cylinder. Describe applications for regenerative extension. describe the physical characteristics of a 2:1 cylinder and its application in a system that routes pressurized flow to both cap and rod end serving to extend the cylinder and a cross connect position serving to retract the cylinder. A regenerative circuit is a system that is used to speed up the extension stroke of the double acting single rod hydraulic cylinder. the output is connected to the input in the directional control value. by this concept, increase in velocity of the piston and decrease the cycle time. Regenerative circuits are used when it is desirable to rapidly advance an actuator into position to reduce cycle time. when configured as a regenerative system, the operation is more rapid than in normal operation with the pump flow rate alone.
Application Of Regenerative Hydraulic Circuit Wiring Draw And Schematic The objective of this research work is to increase the efficiency of a hydraulic circuit by introducing a concept of regenerative circuit. a regenerative circuit is a system that is used to speed up the extension stroke of the double acting single rod hydraulic cylinder. Describe applications for regenerative extension. describe the physical characteristics of a 2:1 cylinder and its application in a system that routes pressurized flow to both cap and rod end serving to extend the cylinder and a cross connect position serving to retract the cylinder. A regenerative circuit is a system that is used to speed up the extension stroke of the double acting single rod hydraulic cylinder. the output is connected to the input in the directional control value. by this concept, increase in velocity of the piston and decrease the cycle time. Regenerative circuits are used when it is desirable to rapidly advance an actuator into position to reduce cycle time. when configured as a regenerative system, the operation is more rapid than in normal operation with the pump flow rate alone.
Application Of Regenerative Hydraulic Circuit A regenerative circuit is a system that is used to speed up the extension stroke of the double acting single rod hydraulic cylinder. the output is connected to the input in the directional control value. by this concept, increase in velocity of the piston and decrease the cycle time. Regenerative circuits are used when it is desirable to rapidly advance an actuator into position to reduce cycle time. when configured as a regenerative system, the operation is more rapid than in normal operation with the pump flow rate alone.
